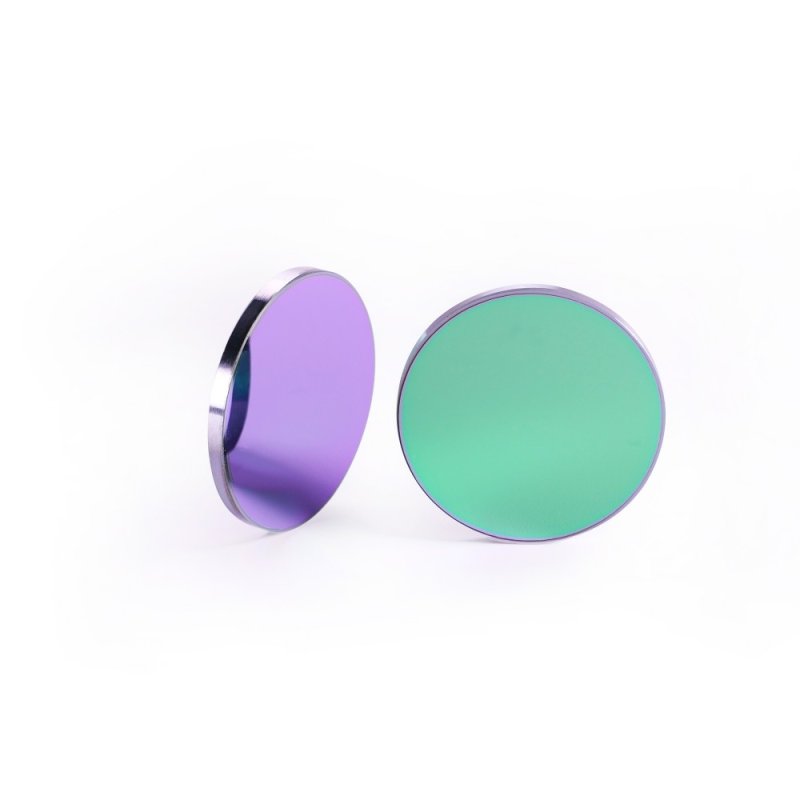

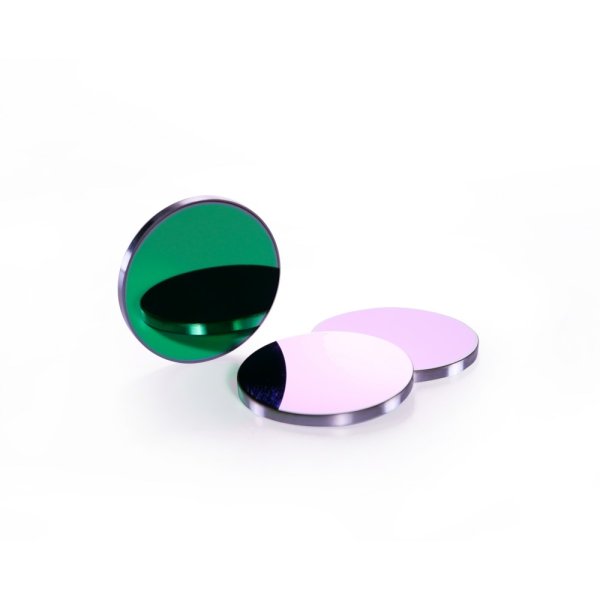

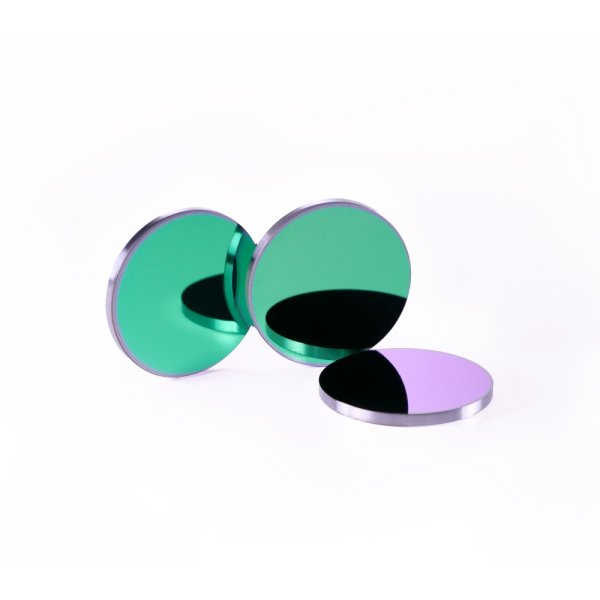

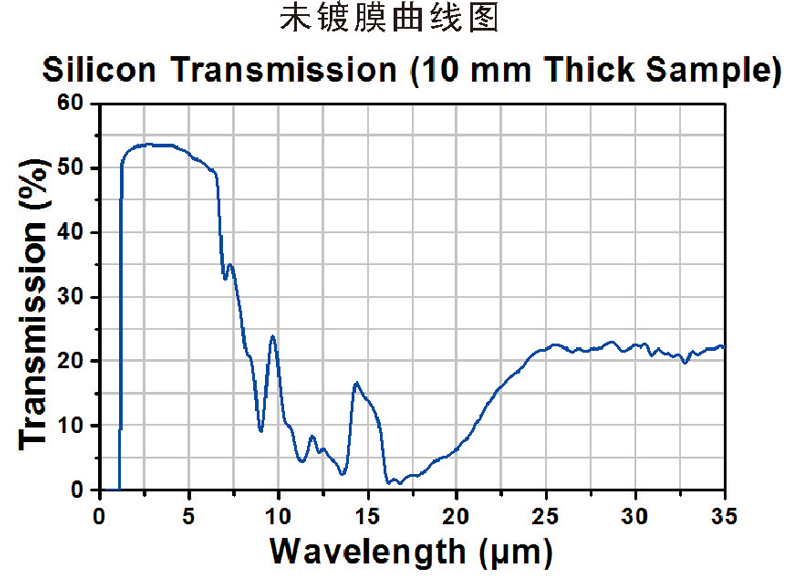

Infrared silicon windows: They offer excellent thermal conductivity, low density, high hardness, and excellent light transmittance in the 1-7μm range. Single-crystal silicon is commonly used in 3-5μm medium-wave infrared optical windows and optical filters or infrared temperature measurement lenses. It is also a common material for laser reflectors.
Diameter (mm) | Thickness (mm) | Coating requirements | Diameter (mm) | Thickness (mm) |
10 | 1 | AR/AR 3-5μm AR/AR 8-12μm AR/DLC 3-5μm AR/AR 5-12μm Other sizes or coating bands can be customized according to customer requirements | 75 | 3 |
12.5 | 1 | 75 | 5 | |
20 | 2 | 76.2 | 6 | |
25 | 3 | 80 | 8 | |
30 | 3 | 90 | 10 | |
38.1 | 3 | 100 | 10 | |
40 | 4 | 150 | 15 | |
50 | 3 | 180 | 18 | |
50.8 | 3 | 200 | 20 | |
63.5 | 5 | 300 | 35 |
Technical requirements | Commercial Grade | High precision grade |
Size range | 1-600mm | 1-600mm |
Diameter tolerance | Soil 0.1mm | Soil 0.01mm |
Thickness tolerance | Soil 0.1mm | Soil 0.01mm |
Parallel deviation | ±3´ | ±2´´ |
Surface quality | 60-40 | 20-10 |
Surface accuracy | 1.0λ | λ/20 |

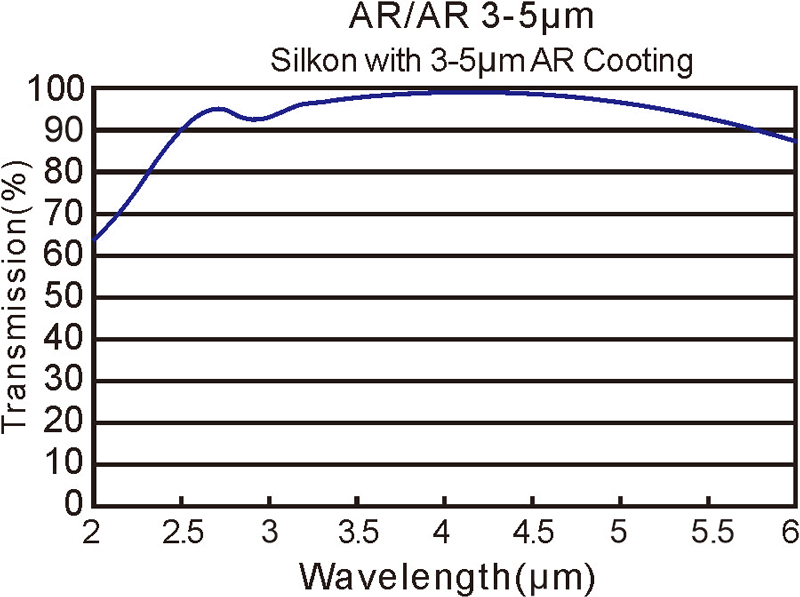

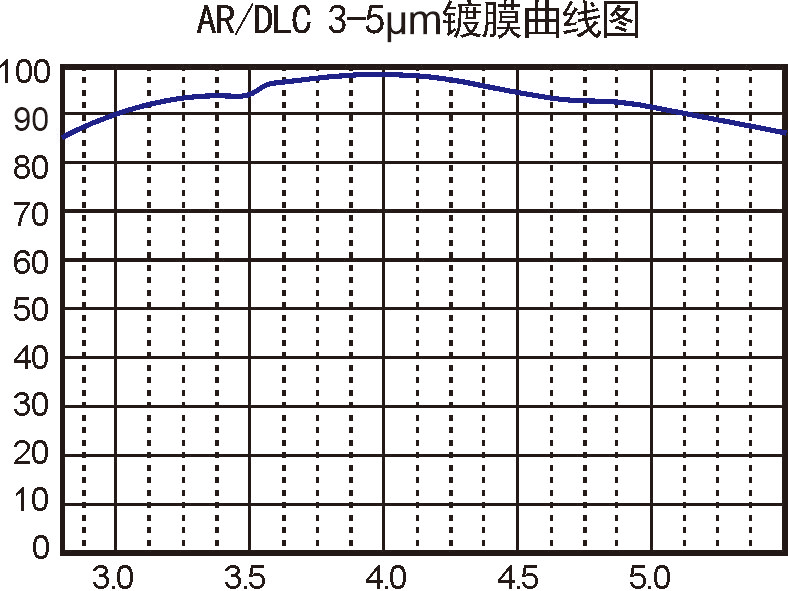

Coating | AR/AR 3-5μm AR/AR 8-12μm AR/DLC 3-5μm AR/AR 5-12μm | |
Chamfer | 0.1-0.5mm*45° | |
Material | Single crystal silicon/high resistance silicon/zone melting silicon | |

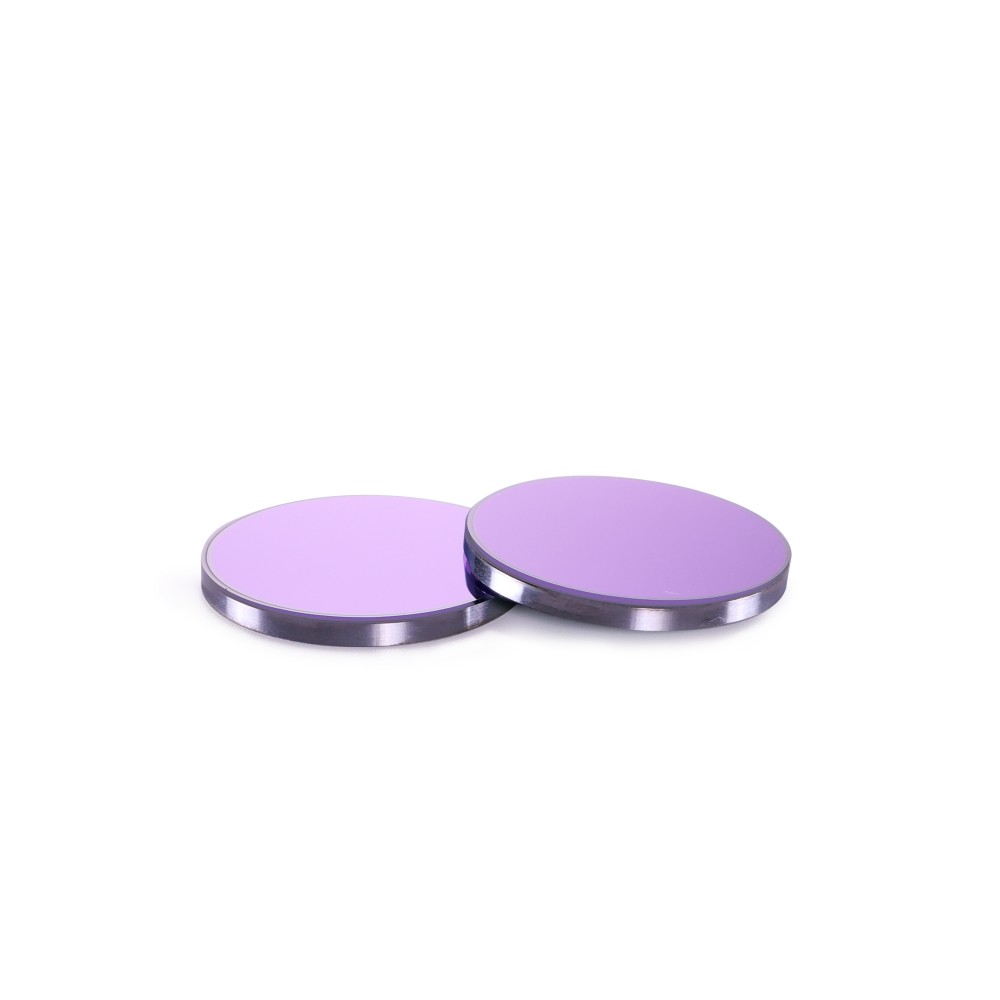

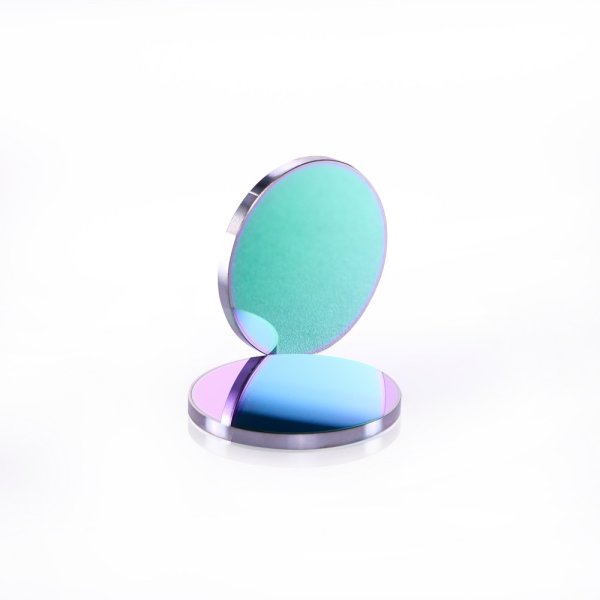

Infrared silicon windows: They offer excellent thermal conductivity, low density, high hardness, and excellent light transmittance in the 1-7μm range. Single-crystal silicon is commonly used in 3-5μm medium-wave infrared optical windows and optical filters or infrared temperature measurement lenses. It is also a common material for laser reflectors.
Diameter (mm) | Thickness (mm) | Coating requirements | Diameter (mm) | Thickness (mm) |
10 | 1 | AR/AR 3-5μm AR/AR 8-12μm AR/DLC 3-5μm AR/AR 5-12μm Other sizes or coating bands can be customized according to customer requirements | 75 | 3 |
12.5 | 1 | 75 | 5 | |
20 | 2 | 76.2 | 6 | |
25 | 3 | 80 | 8 | |
30 | 3 | 90 | 10 | |
38.1 | 3 | 100 | 10 | |
40 | 4 | 150 | 15 | |
50 | 3 | 180 | 18 | |
50.8 | 3 | 200 | 20 | |
63.5 | 5 | 300 | 35 |
Technical requirements | Commercial Grade | High precision grade |
Size range | 1-600mm | 1-600mm |
Diameter tolerance | Soil 0.1mm | Soil 0.01mm |
Thickness tolerance | Soil 0.1mm | Soil 0.01mm |
Parallel deviation | ±3´ | ±2´´ |
Surface quality | 60-40 | 20-10 |
Surface accuracy | 1.0λ | λ/20 |
Coating | AR/AR 3-5μm AR/AR 8-12μm AR/DLC 3-5μm AR/AR 5-12μm | |
Chamfer | 0.1-0.5mm*45° | |
Material | Single crystal silicon/high resistance silicon/zone melting silicon | |
