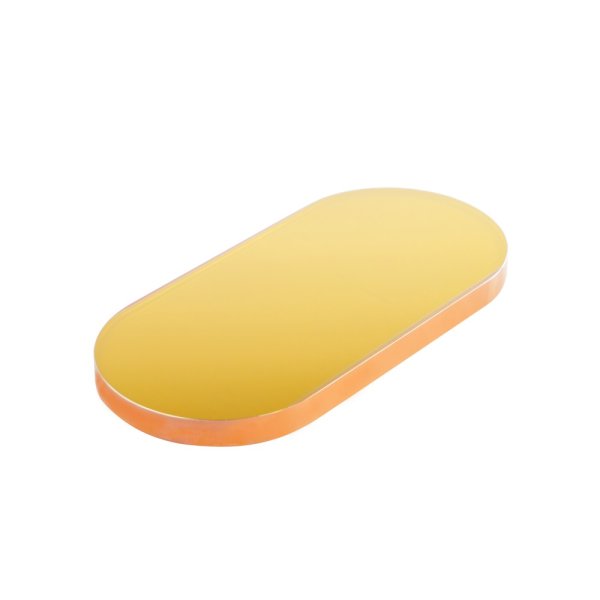

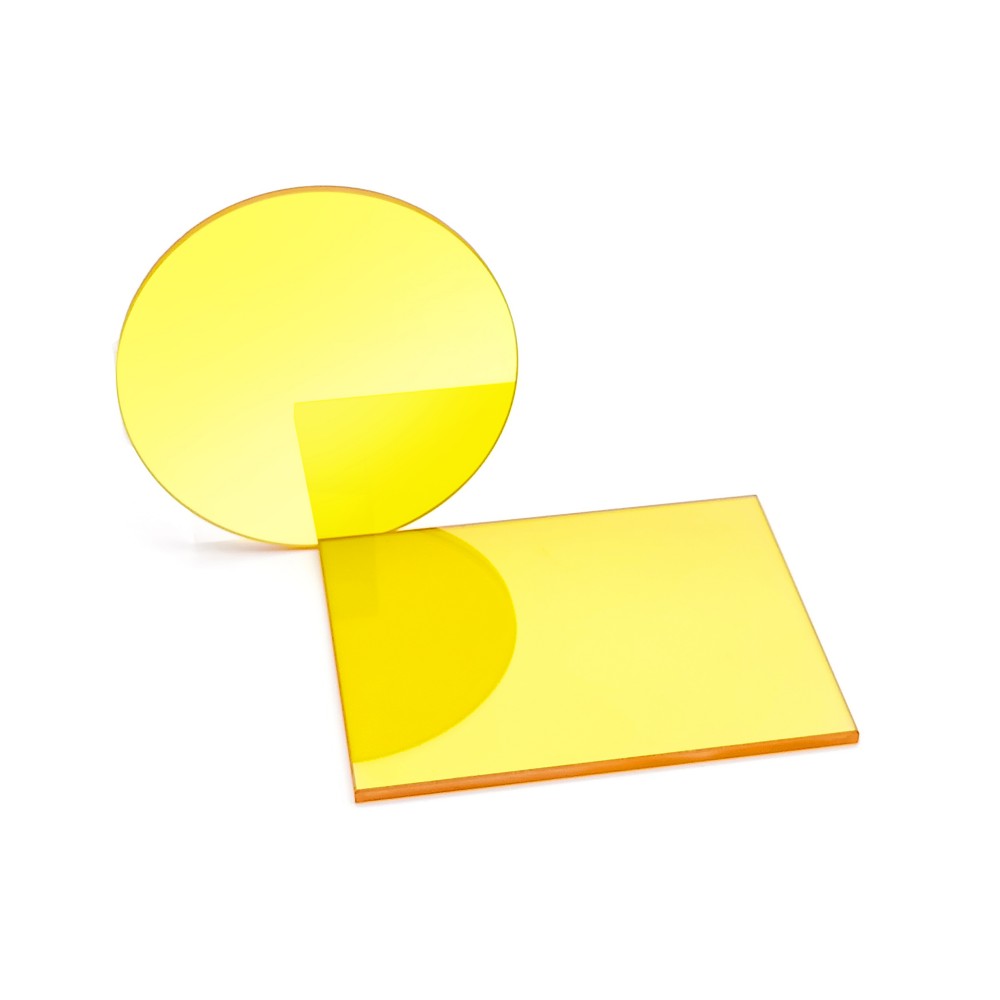

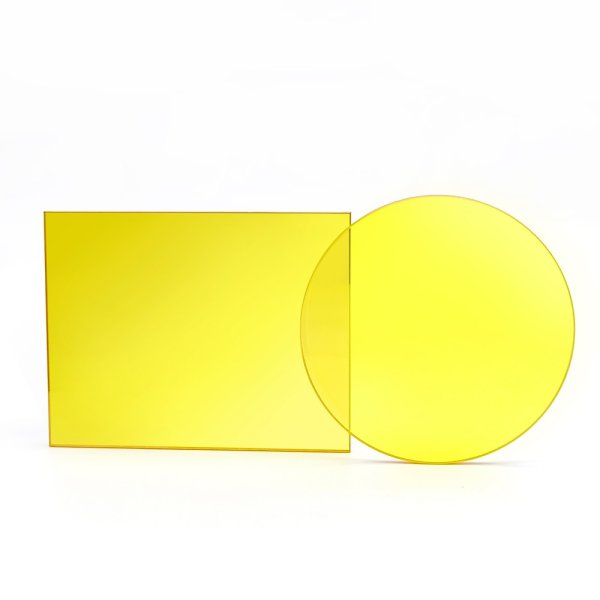

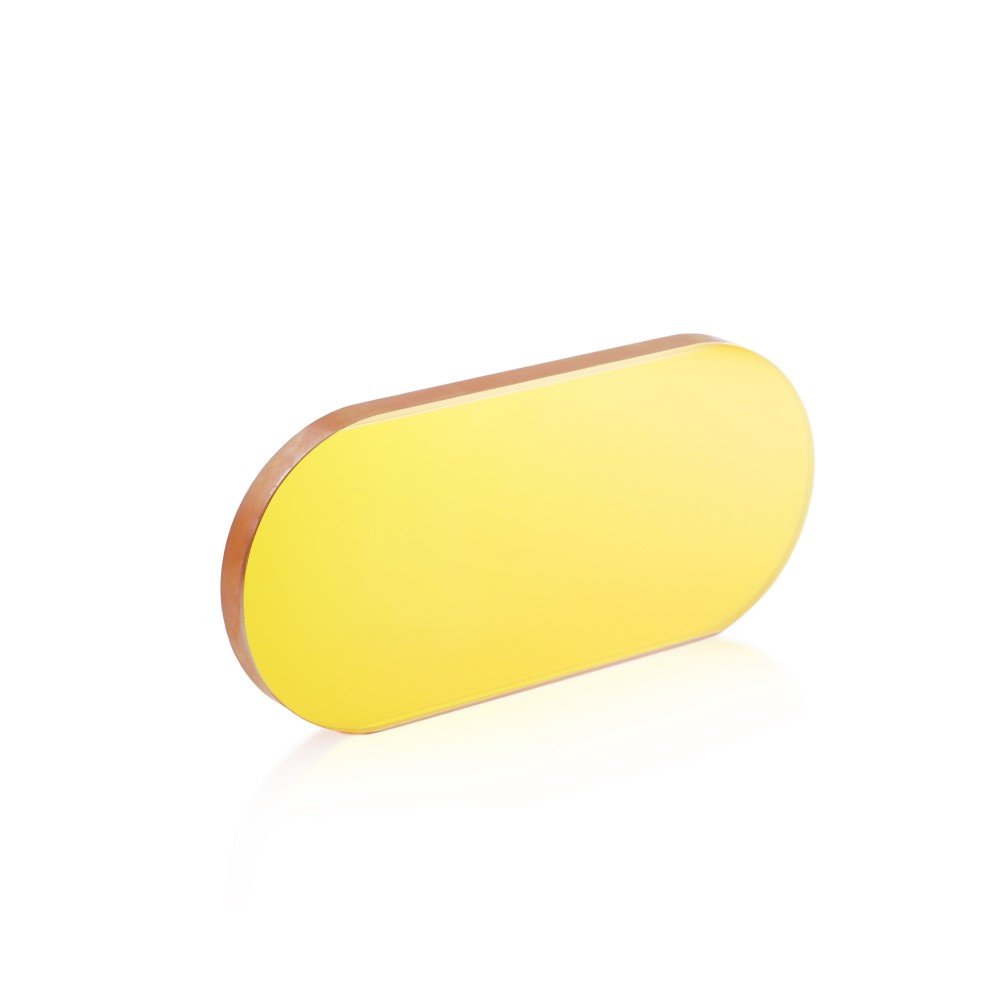

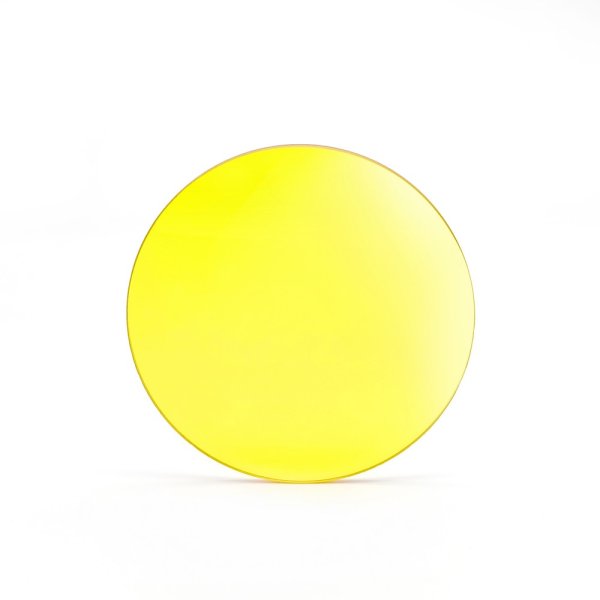

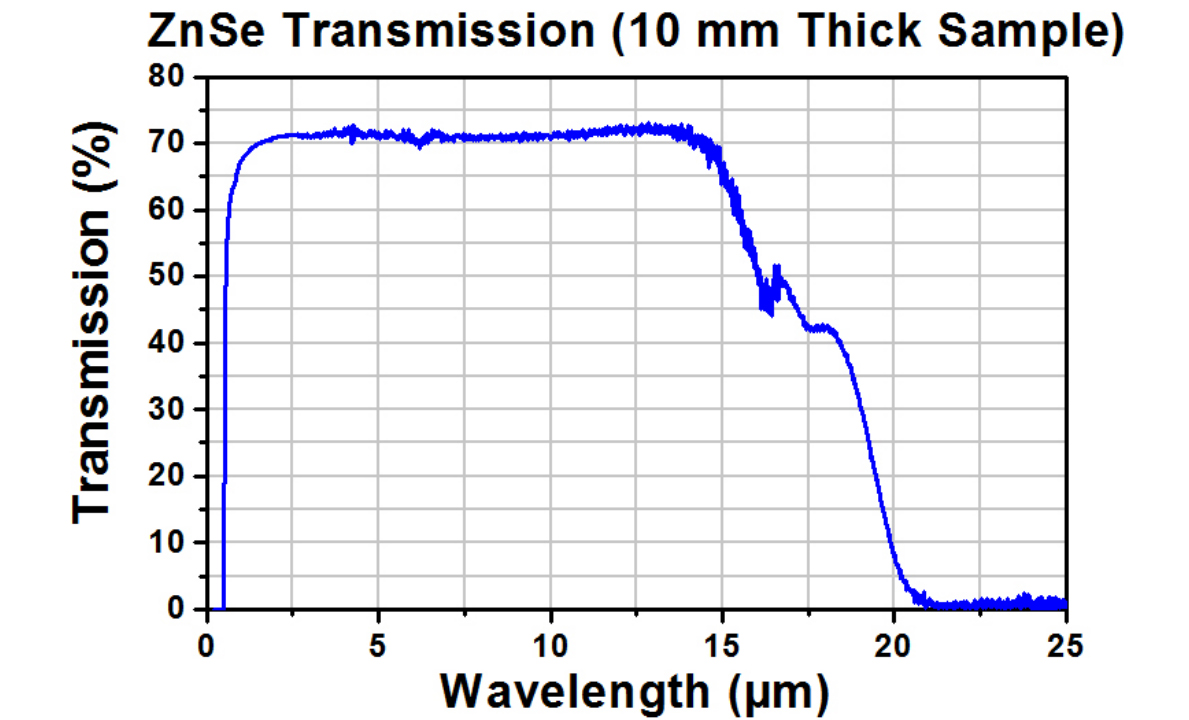

Zinc selenide windows: With their low absorption coefficient, high thermal shock resistance, minimal optical transmission loss, and excellent light transmission, they are widely used in high-power CO2 laser systems. Due to their wide wavelength range (600nm-18000nm) and excellent refractive index uniformity, they are ideal for many infrared (FLIR) thermal imaging systems and mid-wave infrared (MWIR) to infrared applications. They are also used in windows, lenses, and prisms in medical and industrial thermal radiation meters and infrared spectrometers.
Diameter (mm) | Thickness (mm) | Coating requirements | Diameter (mm) | Thickness (mm) |

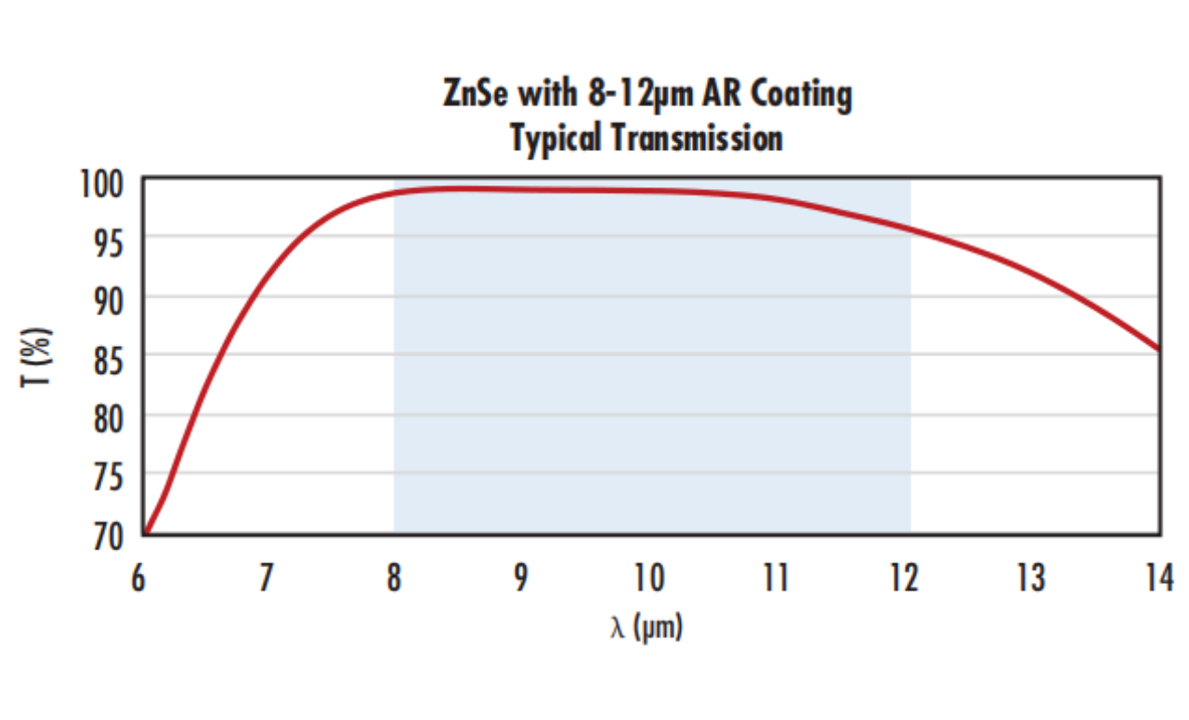

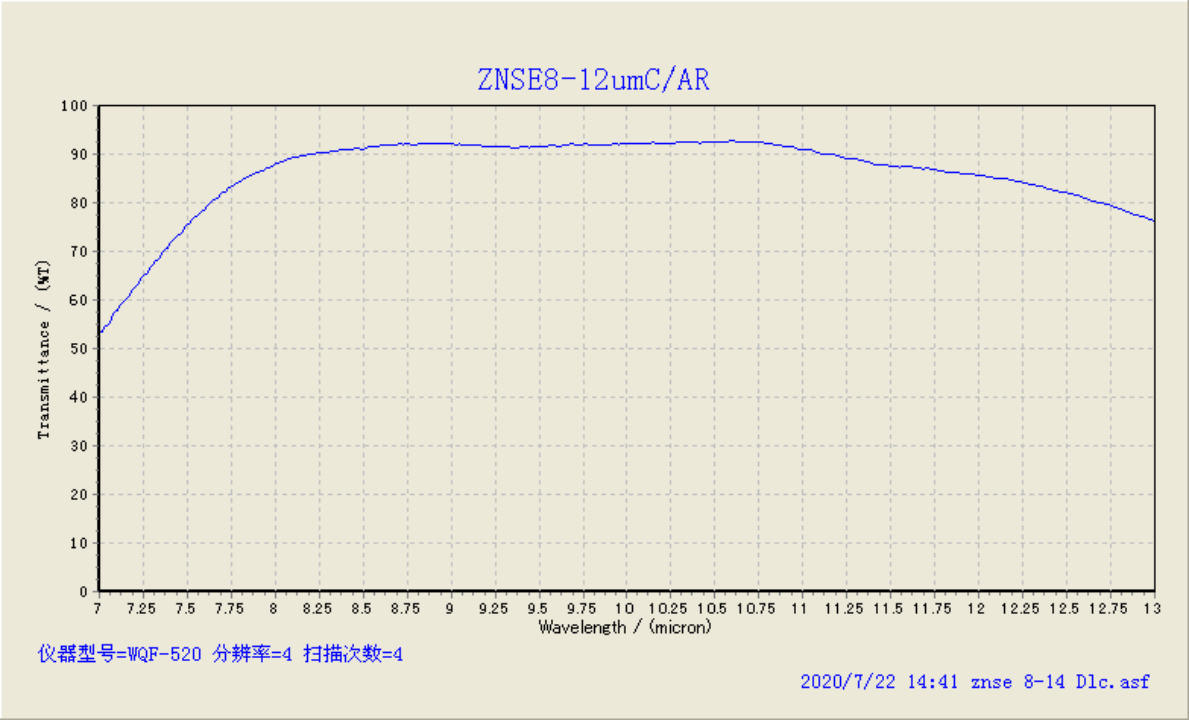

10 | 1 | AR/AR 10.6μm AR/AR 7-15μm AR/DLC 8-12μm AR/AR2-14μm Other sizes or coating bands can be customized according to customer requirements | 75 | 3 |
12.5 | 1 | 75 | 5 | |
20 | 2 | 76.2 | 6 | |
25 | 2 | 80 | 3 | |
30 | 3 | 90 | 3 | |
38.1 | 3 | 100 | 3 | |
40 | 4 | 150 | 15 | |
50 | 3 | 180 | 18 | |
50.8 | 3 | 200 | 20 | |
63.5 | 5 | 300 | 35 |
Zinc selenide windows: have low absorption coefficient, high resistance to thermal shock, low light transmission loss and good light transmittance, so they are widely used in high-power CO2 laser systems.
